2.4GHz 高集成度 單芯片 射頻前端模組

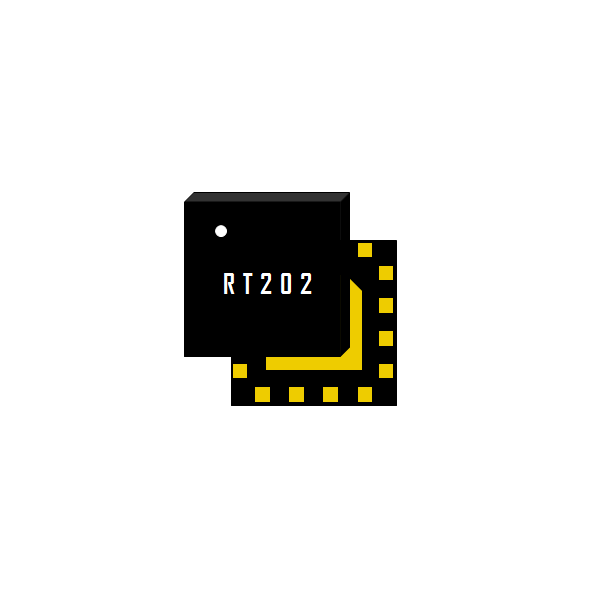

RT202

2.4GHz 高集成度 單芯片 射頻前端模組

產品介紹

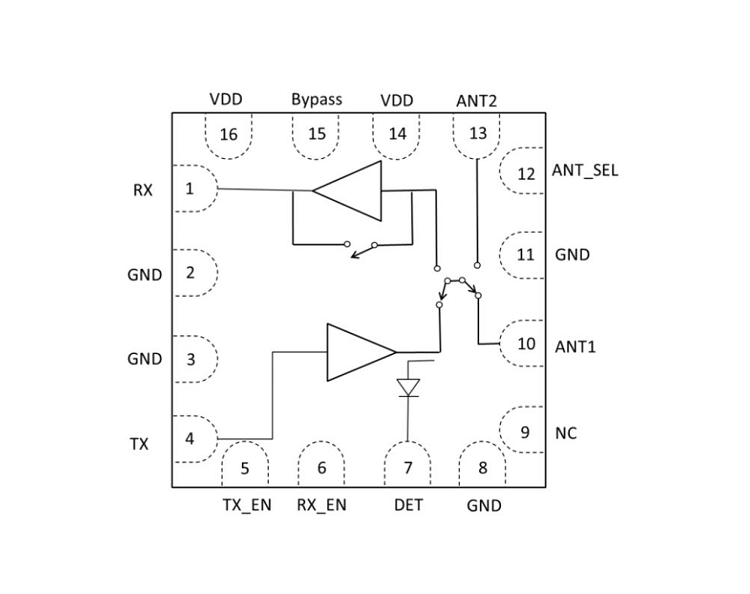

RT202 是一款完全集成的單芯片 RFIC（RF 前端集成電路），它包含關鍵的 RF 功能。 它將高效 PA、帶旁路模式的低噪聲放大器 (LNA)、切換發射和接收的開關電路、相關的匹配網絡、諧波濾波器和分集開關集成在一顆芯片中，同時還集成了 PA 功率檢測電路。RT202 具有簡單的低電壓控制邏輯，并且需要最少的外部元件。 此外，RT202 具有堅固的 ESD 和 VSWR 保護性能。

RT202 設計用于 2.4GHz ISM 頻段，支持 802.15.4 和 ZigBee 標準。 它是需要擴展覆蓋范圍和帶寬的應用的完美射頻前端解決方案。


RT202  is a fully integrated RFIC (RF Front-end Integrated Circuit) which incorporates key RF functionality. It integrates a high-efficiency PA, a low noise amplifier (LNA) with bypass mode, Transmit and Receive switching circuitry, the associated matching network, a harmonic filter and a diversity switch all in one device. The PA power detect circuit is also integrated. RT202 has simple and low-voltage control logic, and requires minimal external components. Moreover, RT202 has ruggedized ESD, and VSWR protection.

RT202  is designed for use in 2.4GHz ISM band and supports the 802.15.4 and ZigBee standard. It's the perfect RF Front-end solution for applications requiring extended range and bandwidth.



產品規格

2.4GHz ZigBee High Power, Fully Integrated RF Front-End IC with 22.5dBm Output Power

Full On-chip 50Ω Input / Output Matching, Integrate Output Filter for Spurs / Harmonics Rejection

Integrated Power Detector for Transmit Power Monitor and Control ? Dual Antenna for Range-extension

Very Low DC Power Consumption

Integrated Receive Bypass Function

ESD Protection Circuitry on All Ports

3mm×3mm×0.75mm Small Outline QFN-16 Package with Exposed Ground Pad

Minimal External Components Required
