0.4-7.125GHz low insertion loss SPDT RF Switch

KCT2825L

0.4-7.125GHz low insertion loss SPDT RF Switch

產品介紹

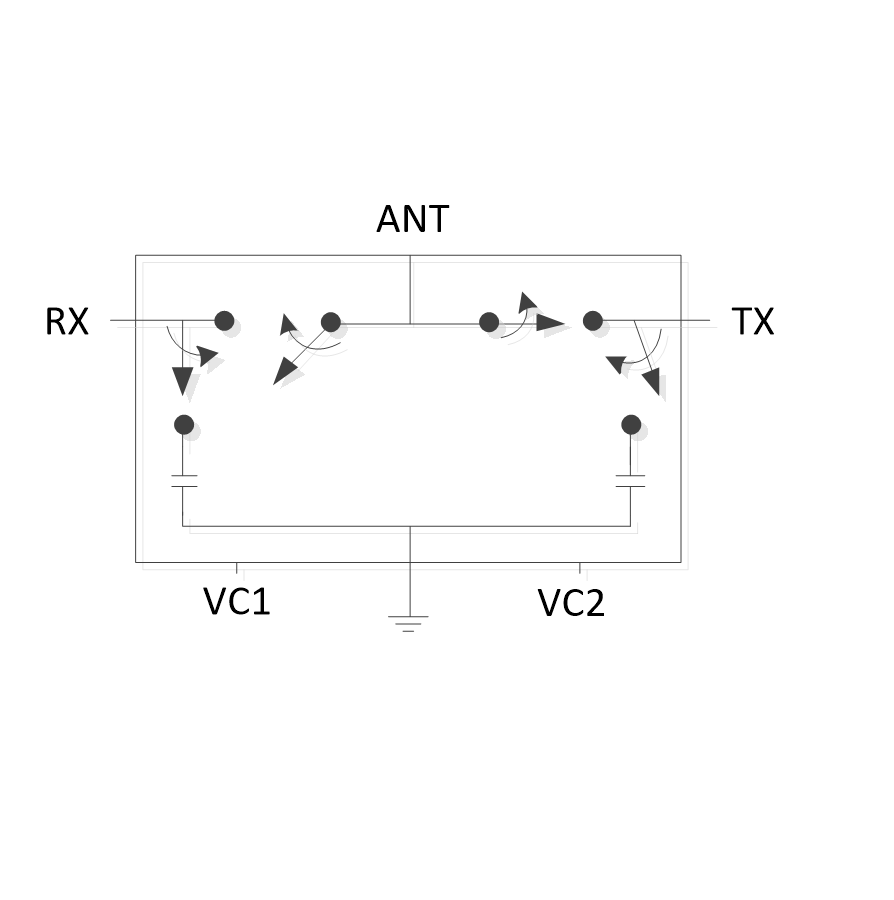

KCT2825L is a single-pole, double-throw (SPDT) switch, which is operating from 0.4GHz to 7.125GHz frequency range. The high linearity and ruggedness performance and extremely low insertion loss makes the device an ideal choice for WLAN applications such as 802.11 /a/b/g/n/ac/ax.

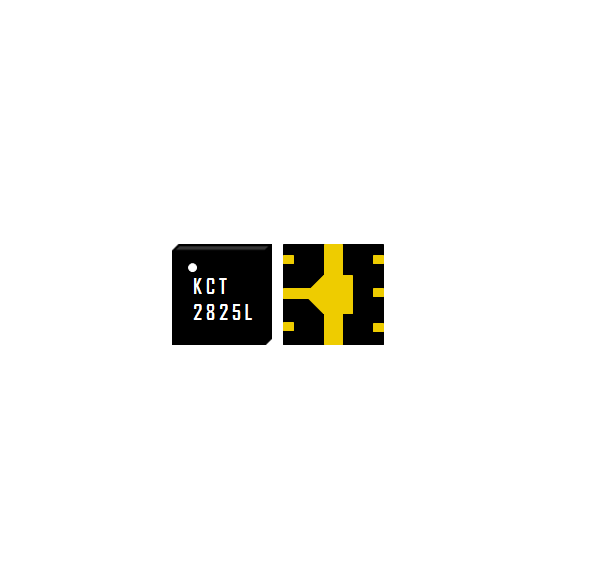

KCT2825L features low insertion loss, high isolation and positive voltage operating with low power consumption. The KCT2825L SPDT switch is provided in a compact 1.0x1.0x0.45mm 6-lead DFN package.


產品規格

Broadband frequency range: 0.4-7.125 GHz

Low insertion: 0.6dB@6.0GHz

Input power of P0.1dB: 34dBm

Small Package: DFN-6L, 1.0mm x 1.0mm x 0.45mm (MSL1, 260℃per JEDEC J-STD-020)

RoHS and REACH compliant


0.4-7.125GHz low insertion loss SPDT RF Switch
