5GHz 低噪聲放大器開關模組

KCT4521L

5GHz 低噪聲放大器開關模組

產品介紹

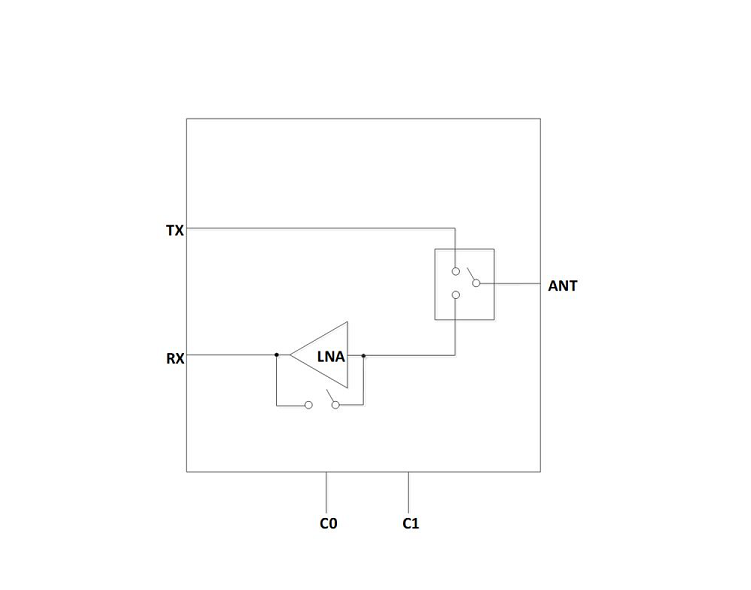

KCT4521L 是一款集成前端模塊 (FEM)，專為在 5.15-5.85GHz 范圍內運行的 IEEE 802.11a/n/ac WLAN 系統而設計。 KCT4521L 在一個器件中集成了帶旁路的低噪聲放大器 (LNA) 和單刀雙擲 (SPDT) 開關。

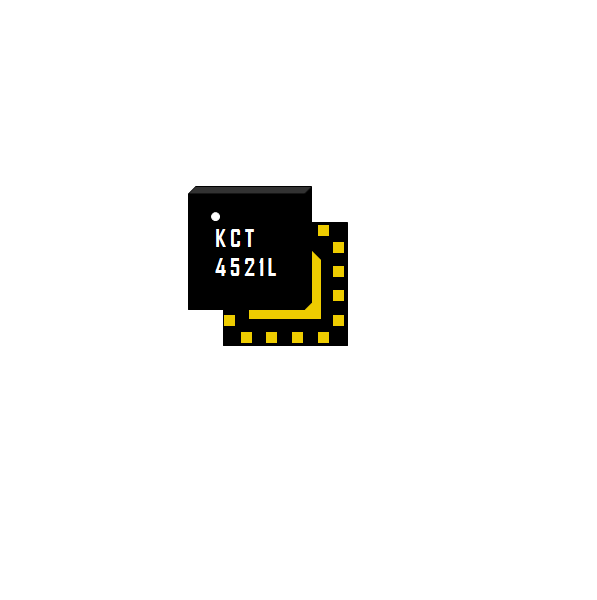

KCT4521L 采用緊湊、扁平的 2.3x2.3x0.5mm 16 引腳 QFN 封裝。 KCT4521L 是實現 5GHz 高功率 WLAN 系統的理想射頻前端解決方案，支持多種標準，包括 802.11a/n/ac。


KCT4521L is an integrated Front-End module (FEM) which is designed for IEEE 802.11a/n/ac WLAN systems operating in the 5.15-5.85GHz range. KCT4521L integrates a low noise amplifier (LNA) with bypass, and single-pole double-throw (SPDT) switch in one device.

KCT4521L is assembled in a compact, low-profile 2.3x2.3x0.5mm 16-pin QFN package. KCT4521L is the ideal RF front-end solution for implementing 5GHz highpower WLAN systems supporting multiple standards including 802.11a/n/ac.

產品規格

Integrated 5GHz LNA with bypass and SPDT switch

LNA gain: 17dB

Bypass Insertion Loss:4.5dB

Noise Figure: 1.9dB

TX to ANT path loss: 0.4dB

Max Power at TX Input of 32dBm

Input and Output matched to 50Ω

Break out path between switch and LNA for optimal filter placement

Small package: QFN-16L, 2.3mm x 2.3mm x0.5mm (MSL3, 260 oC per JEDEC J-STD-020)

RoHS and REACH Compliant
