KCT2826L
0.1 ~ 6.0 GHz 低插損 SPDT 射頻開關
產品介紹
KCT2826L 是一款單刀雙擲 (SPDT) 開關，其工作頻率范圍為 0.1GHz~6.0GHz。用于 WLAN 應用中的模式切換。 KCT2826L 使用先進的開關技術，為所有開關路徑保持低插入損耗和高隔離度。

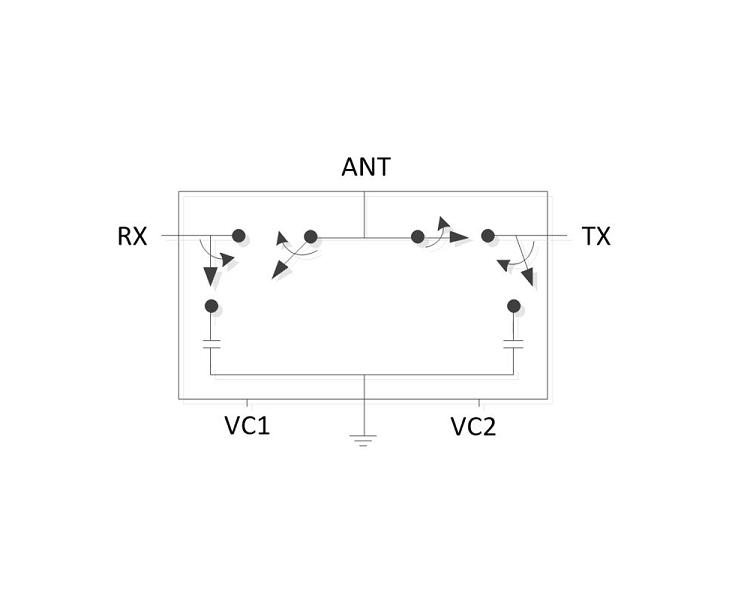

該開關實現的高線性度性能和低插入損耗使其成為低功率發射/接收切換應用的理想選擇。 根據施加到控制引腳 (VC) 的邏輯電壓，RFC 引腳使用低插入損耗路徑連接到兩個開關射頻輸出（RF1 或 RF2）之一，而 RFC 引腳和另一個（RF2 或 RF1）之間的路徑引腳處于隔離狀態。
該開關采用緊湊的 1.5 × 1.5 × 0.55 mm、6 引腳 DFN 小型封裝。
KCT2826L具有低插入損耗、高隔離度、低功耗等特點，是一款用于IEEE 802.11b/g/n/ac WLAN 系統理想的射頻開關解決方案。
KCT2826L is a single-pole, double-throw (SPDT) switch intended for mode switching in WLAN applications. Using advanced switching technologies, the KCT2826L maintains low insertion loss and high isolation for all switching paths.
The high-linearity performance and low insertion loss achieved by the switch make it an ideal choice for low-power transmit/receive applications. Depending on the logic voltage applied to the control pin (VC), the RFC pin is connected to one of the two switched RF outputs (RF1 or RF2) using a low insertion loss path, while the path between the RFC pin and the other (RF2 or RF1) pin is in a high-isolation state.
The switch is manufactured in a compact, 1.5 × 1.5 × 0.55 mm, 6-pin DFN small package.
KCT2826L has the characteristics of low insertion loss, high isolation, and low power consumption. It is an ideal RF switch solution for IEEE 802.11b/g/n/ac WLAN systems.
